Details

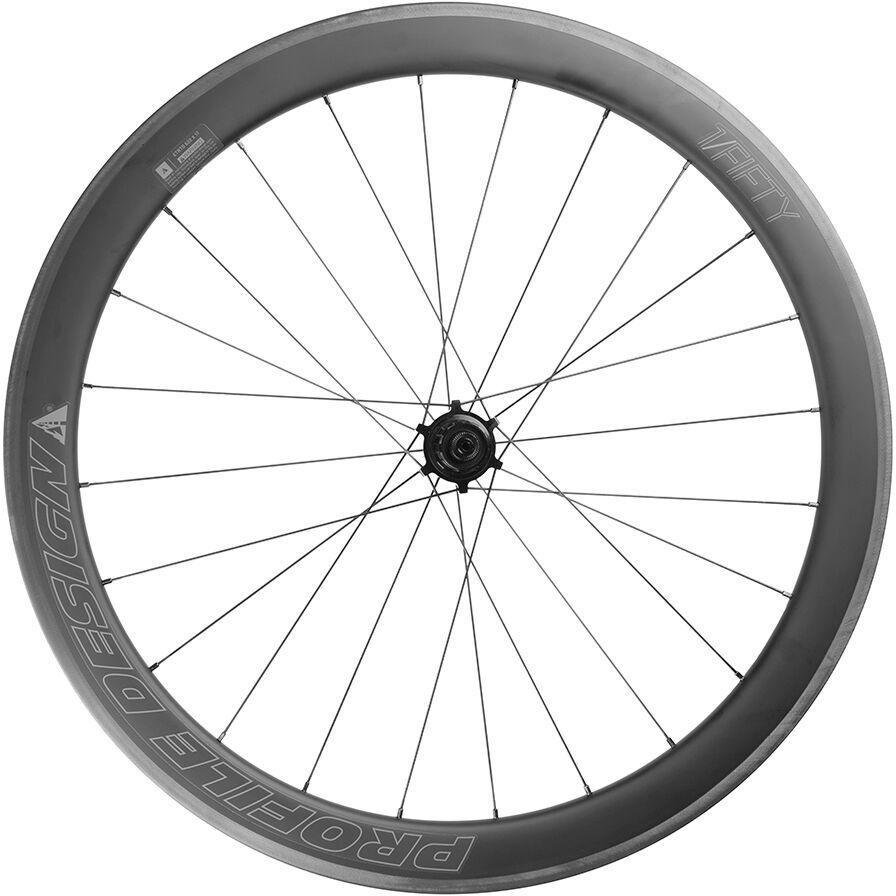

The 1/Fifty is a wide, deep profile, full carbon aero rim that successfully blends crosswind stability, stiffness and handling while delivering superior heat dissipation and braking performance by utilizing the same ultra high Tg resin and brake pads as the TwentyFour series wheels. The semi-automated carbon lay-up, rim construction and raw materials proven through the TwentyFour series wheels are exemplified in the 1/Fifty rims. By utilizing components optimized for more efficient production, we are able to deliver a performance wheelset at an aggressive price.
Specifications
- CFD and wind tunnel developed proprietary carbon fiber 50mm low profile clincher rim.
- High TG resin.
- Proprietary precision machined alloy hubs.
- Sealed cartridge bearings.
- Hand-built assembly.
- 11/10S Shimano compatible.
- Relief along rim bed for center base tape.
Each 1/Fifty Wheel Includes
- 10spd cassette space.
- Profile Design rim tape.
- Profile Design quick-release skewers.
- Profile Design Carbon-Specific P220 TwentyFour Series brake pads.
Front Wheel
- Weight: 730g
- Size: 700c
- Hub: 6061-T6 Alloy
- Bearing Size: 6900
- Compatibility: QR
- Rim Depth: 50mm
- Rim Width (Outside): 24.5mm
- Rim Width (Inside): 17mm
- Spokes: Sapim Race
- Spoke Shape: Straight Pull
- Spoke Count: 20
- Spoke Pattern: Radial
- Spoke Length: 259mm
- Nipples: 7075 Alloy Polyax Double Square
- External Nipples: Yes
- Max Tire Pressure: 125psi / 8.27 bar
- Tire Width: 25-28c
Rear Wheel
- Weight: 884g
- Size: 700c
- Hub: 6061-T6 Alloy
- Bearing Size: 6802
- Compatibility: Shimano/SRAM: 9/10sp, 11sp w/included spacer
- Rim Depth: 50mm
- Rim Width (Outside): 24.5mm
- Rim Width (Inside): 17mm
- Spokes: Sapim Race
- Spoke Shape: Straight Pull
- Spoke Count: 24
- Spoke Pattern Non-Drive: Radial
- Spoke Pattern Drive: 2 cross
- Spoke Length Non Drive: 263mm
- Spoke Length Drive: 268mm
- Nipples: 7075 Alloy Polyax Double Square
- External Nipples: Yes
- 11-Speed Compatible Hub: Yes
- Max Tire Pressure: 125psi / 8.27 bar
- Tire Width: 25-28c
Wheelset
- Set Weight: 1614g
- Max Recommended Rider Weight (lbs): 220lbs
Specs
Rim Material | Carbon |
---|---|
Brake Compatibility | Rim |
Axle | QR |
Rim Depth | 50mm |
Inner Rim Width | 17mm |
Outer Rim Width | 24.5mm |
Hub | 6061-T6 Alloy |
Spokes | Sapim Race, Straight Pull |
Spoke Count |
Front: 20 Rear: 24 |
Lacing |
Front: Radial Rear: Radial, 2 cross |
Nipples | 7075 Alloy Polyax Double Square |
Extras | Rim tape, QR skewer, Carbon-Specific P220 TwentyFour Series brake pads |
* Subject to change without notice.
