Felt Bicycles Frame Compulsion 1

Felt Bicycles Frame Compulsion 1
Matte Olive/Gloss Carbon
Please select options

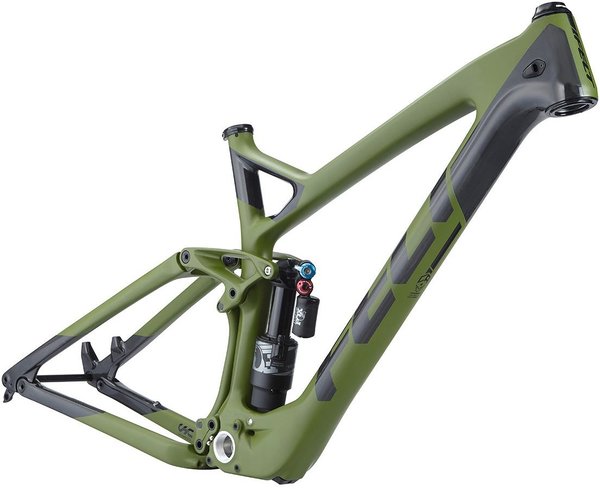

Enduro racers looking to build up their ultimate dream bike need look no farther than the Compulsion frame kit. Decked out in a modern, muted Matte Olive finish, the Compulsion’s full carbon frame includes a carbon rear triangle and carbon links. Featuring Boost spacing, a 1x-specific design, and Felt’s Flip Chip Technology that allows the rider to adjust the bike’s geometry from high and steep to low and slack quickly and easily, the Compulsion is ready for whatever the enduro course or the trail throws your way.


Frame Felt All Mountain, UHC Advanced carbon fiber, MMC with InsideOut construction, Full carbon dropouts, 170mm travel, Equilink suspension, ControlTaper head tube, post disc mount, replaceable derailleur hanger, 73mm threaded BB, carbon fiber trunnion rocker links,internal derailleur cable/brake hose/dropper post routing, 30.9mm seat post size
Headset FSA sealed cartridge bearings, semi-integrated, No.57, 1.125 - 1.5"
Rear Shock FOX Performance Float X2, 205 x 65mm Trunnion
Axles Rear: Felt leverless 12 x 148 x 166L Syntace style, thread: M12 x 1.0
Fork Compatibility 170mm-travel
Wheel Compatibility 27.5-inch
Accessories & Extras Seatpost clamp: Felt single bolt, 34.9mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Matte Olive/Gloss Carbon / 16-inch 840075161875 BBHAB35 000016
Matte Olive/Gloss Carbon / 18-inch 840075161882 BBHAB35 000018
Matte Olive/Gloss Carbon / 20-inch 840075161899 BBHAB35 000020
Matte Olive/Gloss Carbon / 22-inch 840075161905 BBHAB35 000022
