Motor
750W (Peak) 500W (Sustained), 48V Brushless Rear Hub Motor
Speed
Level goes 28 MPH on Pedal Assist and 20 MPH on Throttle
Pedal Assist
5 Levels

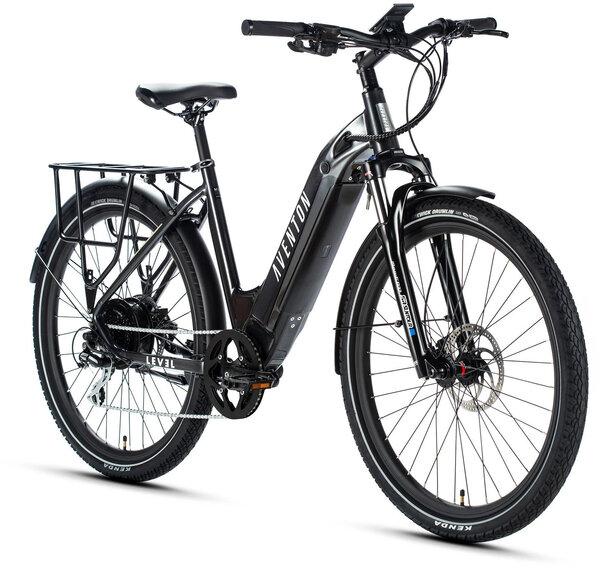

Aventon Level Step-Through Commuter Ebike
This item is currently not available.
Details
Level ships as a Class III ebike, with throttle and pedal assist. If you are riding on private property or in an area without ebike speed restrictions, the speed limit can be modified in the settings, and Level's powerful motor can go up to about 4 MPH above the factory set top speed. Level will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are not allowed.
Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride or park your ebike in the rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.
THROTTLE
Thumb Throttle on Handlebars
BATTERY
Removable Internal Lithium-ion 48V, 14Ah (672Wh) with Samsung Cells
CHARGER
48V 3 Amp Fast Charger, 4-5 Hour Charging
Display
M5 LCD Smart Easy Read Display with Backlight
Sensors
Cadence Sensor, Speed Sensor
Range
40 Miles Average
Frame and Fork
Frame
6061 Double-Butted Aluminum Alloy with Internal Battery
Fork
Suntour Mobie A32, coil spring, thru-axle, 75mm travel, with lockout
ACCESSORIES
Pedals
9/16" Alloy Platform
Kickstand
Included, Rear Mount
Drivetrain & Brakes
Bottom Bracket
Square Taper, Sealed
Cassette
Shimano Acera Cassette, 12-32T, 8 Speed
Chain
KMC Z Series, 8 Speed
Crankset
170mm w/ 46 T
Shift Lever
Shimano Acera 8 Speed, Rapidfire
Rear Deraileur
Shimano Acera 8 Speed
Brakes
Bengal Ares 3 Hydraulic Disc Brakes, 180mm Rotors
Headset
VP Sealed Bearing Headset
Wheels & Tires
Rim
Double Wall Aluminum 36h Front & Rear
Hubs
Joytech 36H Disc Thru-axle Front, Nutted Rear
Spokes
Black Stainless 13 Gauge
Tires
27.5" x 2.2" Kenda Kwick Drumlin, Ebike Rated, Reflective Sidewalls
Tubes
Butyl Rubber, Schrader Valve
Contact Points
Saddle
Aventon by Velo
Seat Clamp
Quick Release
Grips
Ergonomic Comfort
Seatpost
Forged Alloy, 27.2mm, 2-Bolt Clamp
Handlebars
Aluminum 31.8mm, 680mm
Stem
Threadless, 31.8mm, 7 Degree Rise
Weight
62lbs
Weight Limit
Maximum Rider Weight: 250lbs
Cargo Capacity: 50lbs
Professional Built and Serviced by our in Store Mechanic’s
Speed 13 mph
Range 57 Miles
Speed 17 mph
Range 44 Miles
Speed 20 mph
Range 36 Miles
Speed 25 mph
Range 26 Miles
Speed 28 mph
Range 25 Miles
